Sheet-material trolley (without tubular support)
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1310 x 800 x 310 |
| Load capacity (kg): | 500 |
| Loading Surface - width x depth (mm): | 1200 x 800 |
| Weight (kg): | 41,5 |
| Wheelset: | Thermoplastisches Gummi |
| Wheel width (mm): | 40 |
| Wheel Ø (mm): | 200 |
Pick your accessory
from €0.00*
GTIN/EAN:
4035694004870
Product number:
sw-1282
Product information "Sheet-material trolley (without tubular support)"
Welded steel construction
Without tubular supports

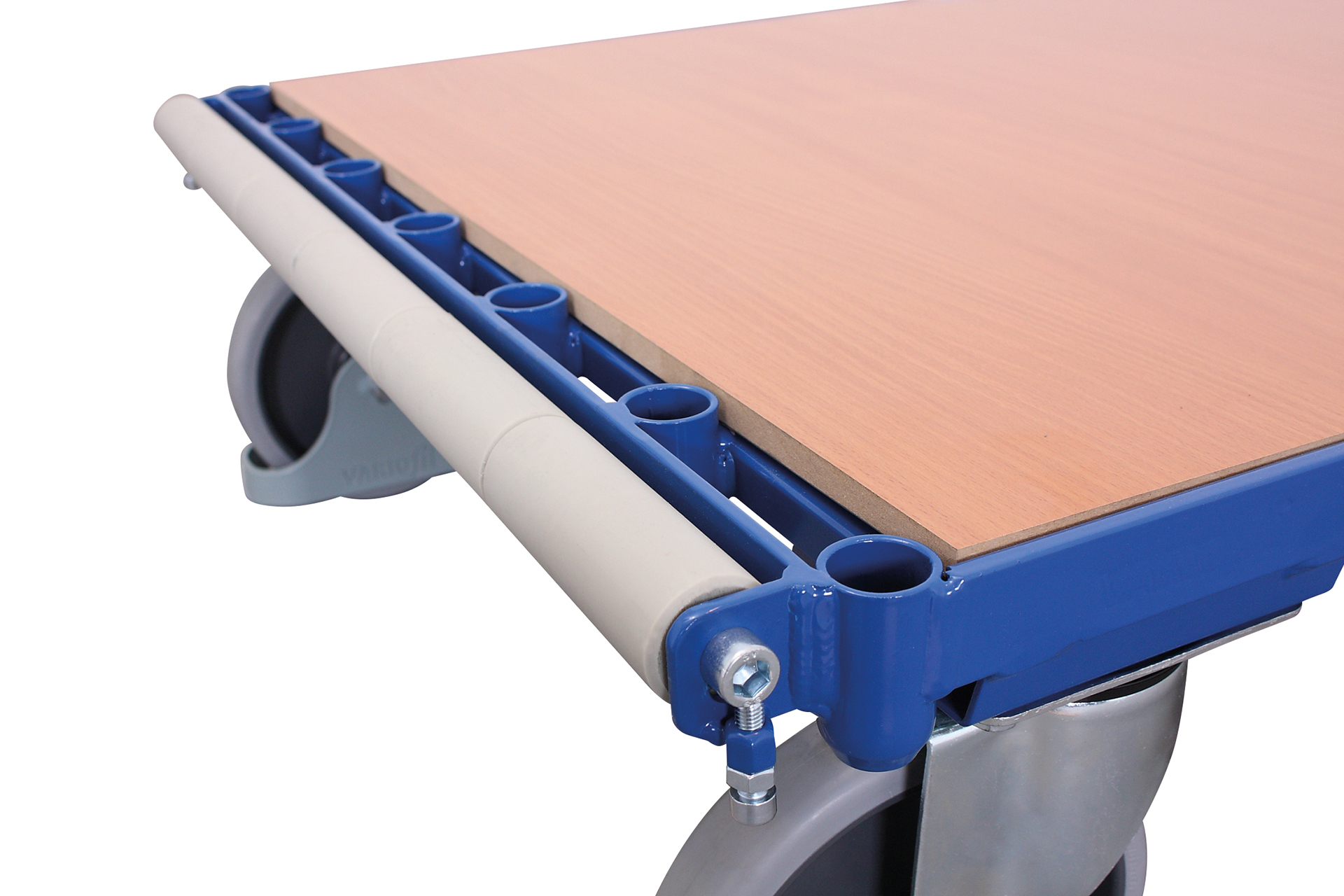

With one approach roller at end
7 alternative positions for inserting tubular supports
Clearance between supports 95 mm
Load surface of wood-based board
Permanent surface protection
Impact-resistant and scratch-resistant
Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings
Thread guard and foot guard
2 swivel castors with brakes and 2 fixed castors
For 1.200 kg carrying capacity: Elastic solid-rubber tyres on cast aluminium wheel rim with precision deepgroove ball bearings with foot guard
2 swivel castors with brakes and 2 fixed castors.
Without tubular supports
With one approach roller at end
7 alternative positions for inserting tubular supports
Clearance between supports 95 mm
Load surface of wood-based board
Permanent surface protection
Impact-resistant and scratch-resistant
Grey non-marking thermoplastic rubber tyres on plastic wheel rim with precision deepgroove ball bearings
Thread guard and foot guard
2 swivel castors with brakes and 2 fixed castors
For 1.200 kg carrying capacity: Elastic solid-rubber tyres on cast aluminium wheel rim with precision deepgroove ball bearings with foot guard
2 swivel castors with brakes and 2 fixed castors.
| Colour: | RAL 5010 |
|---|---|
| Dimensions - width x depth x height (mm): | 1310 x 800 x 310 |
| Load capacity (kg): | 500 |
| Loading Surface - width x depth (mm): | 1200 x 800 |
| Weight (kg): | 41,5 |
| Wheelset: | Thermoplastisches Gummi |
| Wheel width (mm): | 40 |
| Wheel Ø (mm): | 200 |
