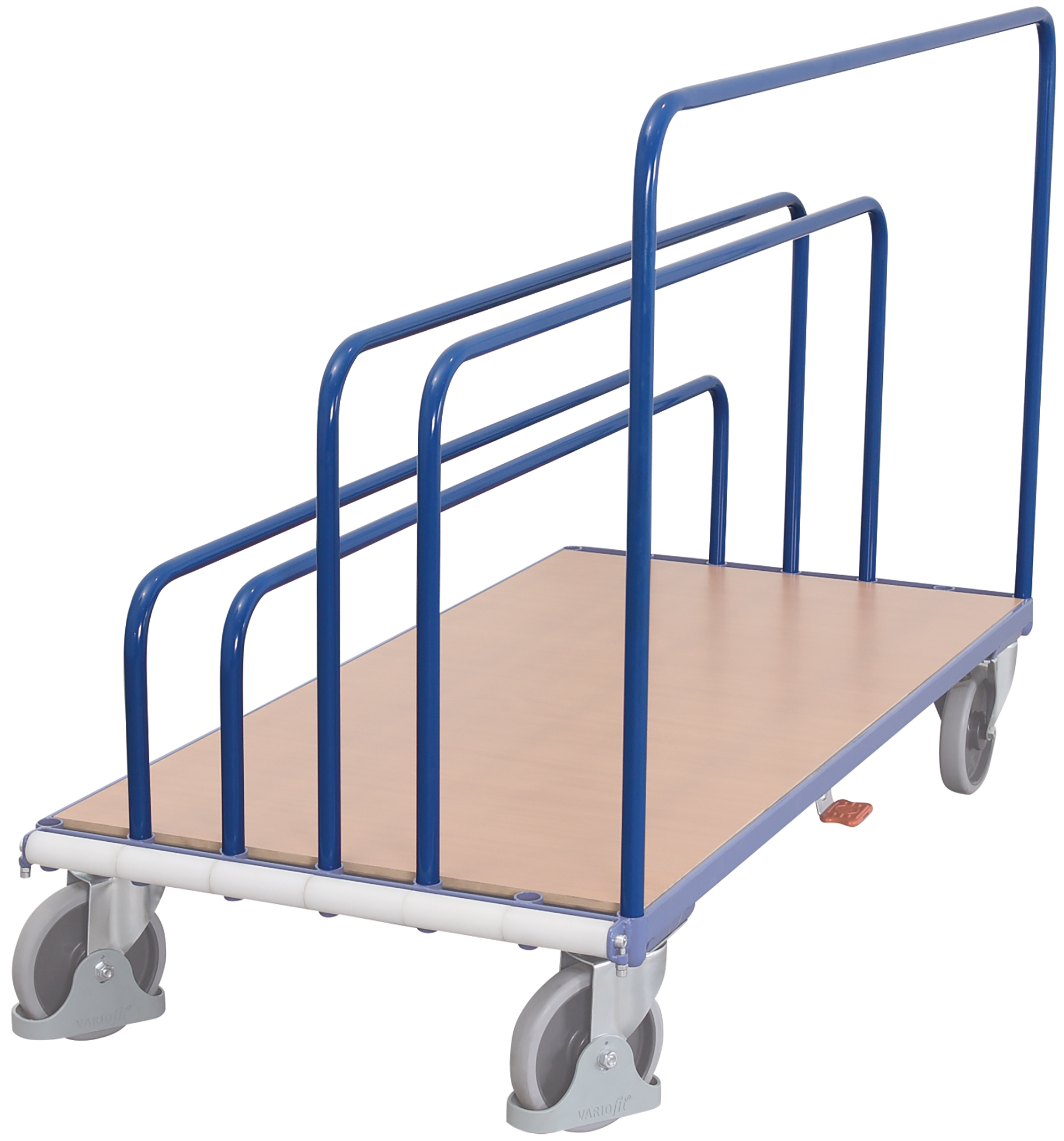

Tubular support for sheet-material trolley/stand
Colour:
RAL 5010
|
Dimensions - width x height (mm):
1600 x 900
Tubular supports for sheet-material trolley/stand, available in heights 300 mm, 600 mm and 900 mm and lengths 1,200 mm and 1,600 mm Permanent surface protection Impact- and scratch resistant.
Pallet converter separation grid
Colour:
RAL 5010
|
Dimensions - depth (mm):
950
|
Usable height (mm):
400
Welded steel construction Suitable for Euro pallets and industrial pallets, but only for types 62 and 64 Insertable separator grids Straight grid with wire mesh, mesh size 100 x 100 mm Permanent surface protection Impact-resistant and scratch-resistant.
Galvanised steel load surface
for loading surface - width x depth (mm):
850 x 500
Galvanised steel sheet, 1.5 mm Folded over MDF panels.
Shelves for sehlf trolley
Colour:
Buche
|
for loading surface - width x depth (mm):
1000 x 600
Shelves of 15 mm wood-based board Incl. hooks, screws and wood Payload 80 kg.
Wooden shelves for shelf trolley
Colour:
RAL 7016
|
Loading Surface - width x depth (mm):
1320 x 535
Shelves with load surface of wood-based board 15 mm high rim on long side Impact- and scratch resistant Suitable for shelf trolleys with inclinable shelves.
Side walls for parcel/shelf trolleys, low
Colour:
RAL 7016
|
Loading Surface - width x depth (mm):
1200 x 800
Additional side walls of wire mesh, mesh size 120 x 120 mm For hanging insertion Rigid walls Permanent surface protection Impact- and scratch-resistant.
Shelves of wood-based board for shelf trolleys
Colour:
Grau
|
for loading surface - width x depth (mm):
1045 x 685
Shelf of wood-based board 18 mm thick Incl. angle steel Loading: 80 kg.
Puncture-proof tyres, diam. 260 mm
Load capacity (kg):
150
|
Weight (kg):
1,5
|
Wheel width (mm):
85
|
Wheel Ø (mm):
260
Puncture-proof wheel on steel rim 1.8 mm, fire red with precision deep-groove ball bearings No valve Hole: 20 mm Hub length: 14 mm Incl. fixing parts.
Side walls with folding top half for parcel/shelf trolleys, high
Colour:
RAL 5010
|
Loading Surface - width x depth (mm):
1200 x 800
Additional side walls of wire mesh, mesh size 120 x 120 mm For hanging insertion Half folding Permanent surface protection Impact- and scratch-resistant.
Tubular supports
Colour:
RAL 5010
|
for loading surface - width x depth (mm):
990 x 640
Welded steel construction With transverse strut in tubular support Useful height: 745 mm Permanent surface protection Impact- and scratch resistant.
Add-on frame
Colour:
RAL 7016
|
Loading Surface - width x depth (mm):
810 x 610
Welded steel construction Incl. 4 catching corners and lifting rings Height adjustment by internal spring-loaded bold Loading heights: 650 mm, 605 mm, 555 mm und 505 mm: Add-on frame can be bolted to dolly Permanent surface protection Impact- and scratch-resistant.
Side walls with folding top half for parcel/shelf trolleys, high
Colour:
RAL 7016
|
Loading Surface - width x depth (mm):
1000 x 600
Additional side walls of wire mesh, mesh size 120 x 120 mm For hanging insertion Half folding Permanent surface protection Impact- and scratch-resistant.
Mesh shelves for shelf trolley
Colour:
RAL 7016
|
Loading Surface - width x depth (mm):
1320 x 535
Shelves with load surface of wire mesh, mesh size 50 x 50 mm 15 mm high rim on long side Impact- and scratch resistant Suitable for shelf trolleys with inclinable shelves.
Galvanised steel load surface
for loading surface - width x depth (mm):
1000 x 600
Galvanised steel sheet, 1.5 mm Folded over MDF panels.
Distance pieces for tyre rack and tyre trolley
Loading surface - width (mm):
160
|
Weight (kg):
0,4
|
pieces:
4
Putting the galvanized distance pieces in the tubes of the tyre rack/trolley you can store wheels with diametre up to 820 mm instead of 650 mm in the second level even if a further level is installed Surface hot galvanised.
Tubular support for sheet-material trolley/stand
Colour:
RAL 5010
|
Dimensions - width x height (mm):
1200 x 900
Tubular supports for sheet-material trolley/stand, available in heights 300 mm, 600 mm and 900 mm and lengths 1,200 mm and 1,600 mm Permanent surface protection Impact- and scratch resistant.
Trays for shelf trolley
Colour:
Buche
|
for loading surface - width x depth (mm):
1000 x 700
Trays of 15 mm wood-based board Incl. hooks, screws and wood 45 mm high rim Payload 80 kg.
Extension tube for tyre rack and tyre trolley
Dimension:
Ø 26,9
|
Dimensions - Width (mm):
1220
|
Load capacity (kg):
150
|
Loading surface - width (mm):
1130
|
Weight (kg):
2,0
|
pieces:
2
Insertion of extension tubes between two tyre trolleys/racks creates additional storage levels for tyre storage 2 extension tubes are needed to create a new tyre storage level Total length: 1,220 mm Useful length: 1,130 mm Tube diameter: 26.9 mm Surface hot galvanised.

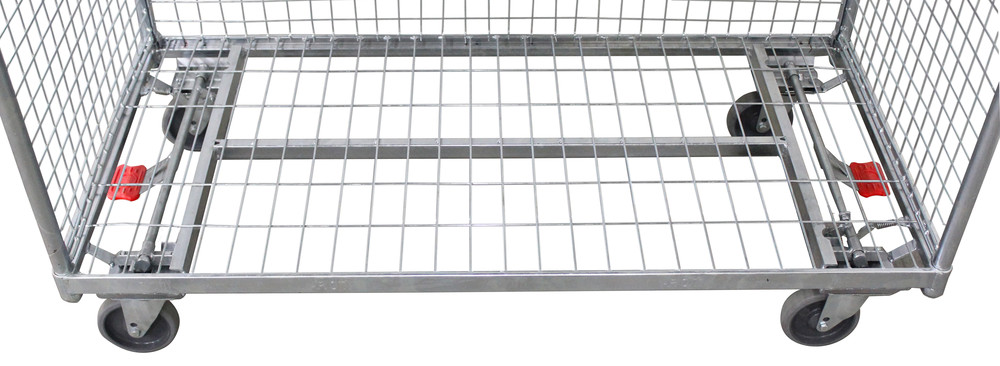

EasySTOP central brake accessible from both sides
Wheelset:
2 Räder gebremst
In exchange for brake castors with thermoplastic standard rubber tyres Available in three sizes Operated on both sides The EasySTOP brake acts on both or on all 4 swivel castors, the pedal is easily returned to the starting point Adjustable braking effect Brakes work in every wheel position The pedal can be operated with either normal or safety footwear.

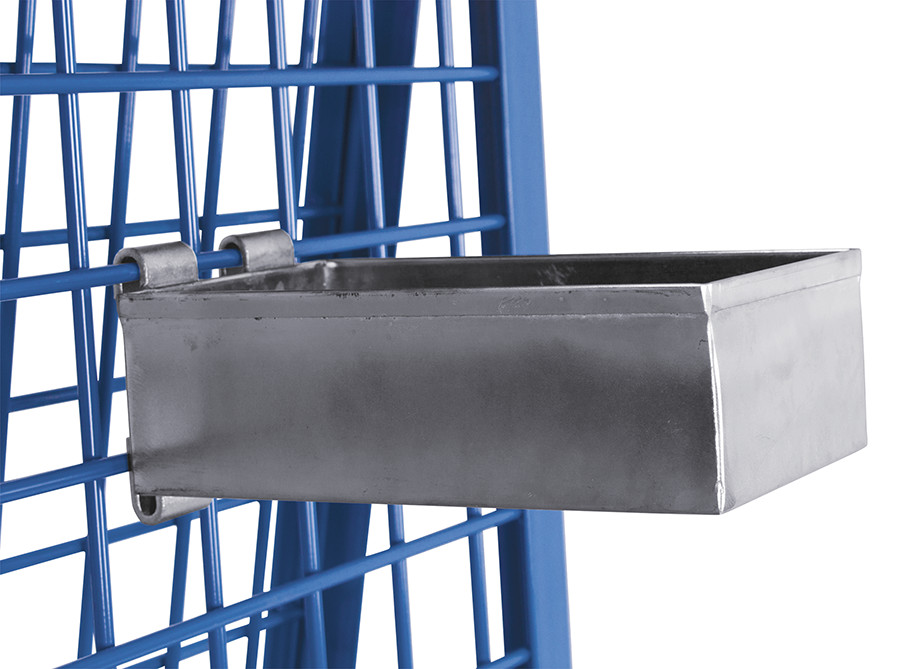

Material box
Dimensions - width x depth x height (mm):
1200 x 265 x 110
Material boxes available in two sizes Galvanised Payload 25 kg or 50 kg depending on size of material box.
Pallet converter separation grid
Colour:
RAL 5010
|
Dimensions - depth (mm):
950
|
Usable height (mm):
600
Welded steel construction Suitable for Euro pallets and industrial pallets, but only for types 62 and 64 Insertable separator grids Straight grid with wire mesh, mesh size 100 x 100 mm Permanent surface protection Impact-resistant and scratch-resistant.
